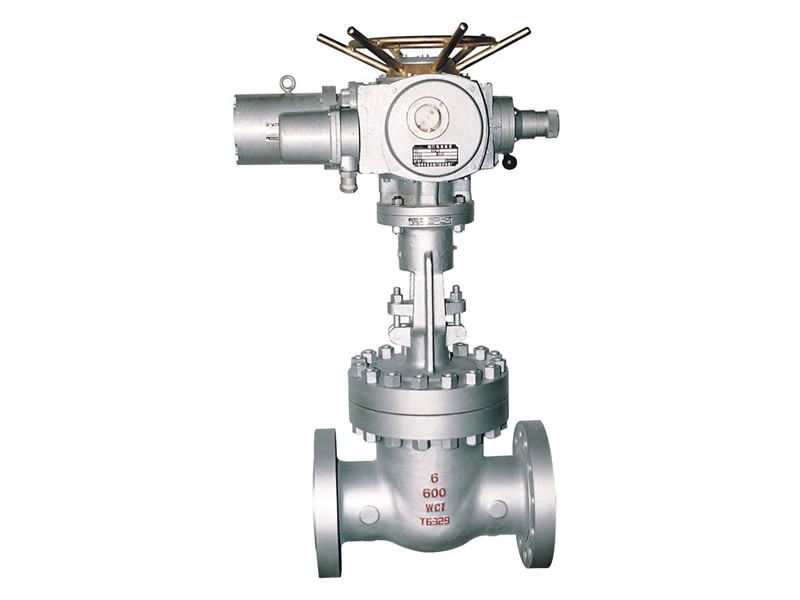

Electric Gate Valve
- Size
- NPS 1/2”~48” (15mm~1200mm)
- Connection
- RF, RTJ, BW
- Operation
- Hand lever, Gearbox, Pneumatic, Electric
- Pressure
- ASME Class150~1500LBS (PN16~PN160)
Electric Gate Valve
Products Detail:
Pressure: Class 150LB ~ 2500LB
Size: 2"~60"
Connect End: RT, RTJ, BW.
Material: Carbon steel, Low temperature steel, Alloy steel, Stainless steel, Duplex steel. etc.
Application Standard:
Design: API600, BS1414
Face to face: ASME B16.10
Flange ends: ASME B16.5 / ASME B16.47 / EN1092-1
BW Ends: ASME B16.25
Inspection: API598, EN12266-1
Temperature Rating: ASME B16.34
Certificate: EN 10204-3.1
Markings: MSS-SP 25
