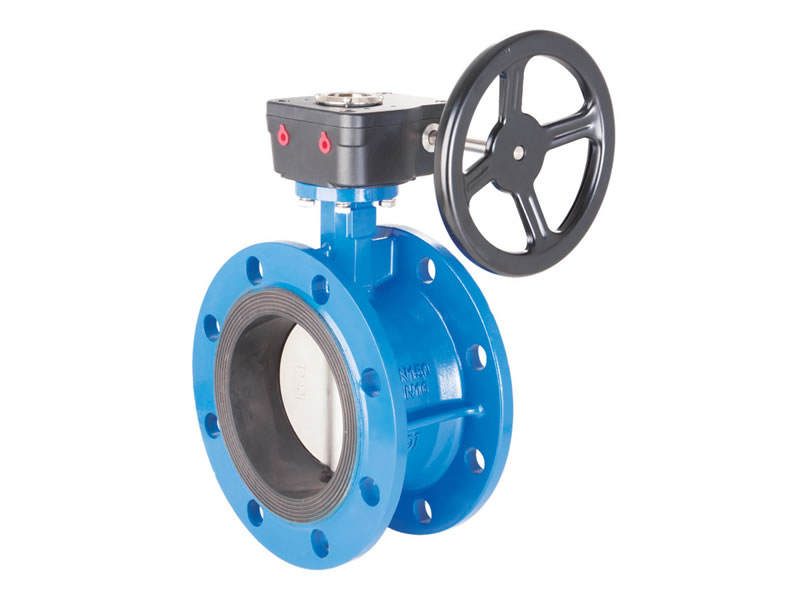

Soft Seal Butterfly Valve

Size
NPS 2”~48”(50mm~1000mm)
Connection
RF, RTJ, BW,Wafer ,Lug
Operation
Lever,Gear,Electric,Pneumatic,Hydraulic
Pressure
ASME Class150~600LBS(PN16~PN100)

Type:  soft seal butterfly valve

Soft sealing:PTFE,EPDM,NBR

Features: The sealing form mostly adopts the sealing structure, and the sealing material is rubber, Teflon and so on. Due to structural limitations, it is not suitable for such industries as high temperature resistance, high pressure, corrosion resistance and wear resistance.

Pressure: Class 150LB ~600LB

Size : 2" ~ 60"

End: RF, Wafer, Lug.

Operator: Lever, Gear, Electirc, BS. Etc.

Material: Cast Steel, Alloy Steel, Low temperature Steel, Stainless Steel, Duplex Steel. Etc.

Application Standard:

Design:API609

Face-to-face:API609

Flanged Ends:ASME B16.5/B16.47

Inspection Test :API 598

Temperature Ratings :ASME B16.34

Certificate:EN 10204 type 3.1

Markings: MSS SP 25
